[Completed]: Imprudence Engine

Howzit guys,

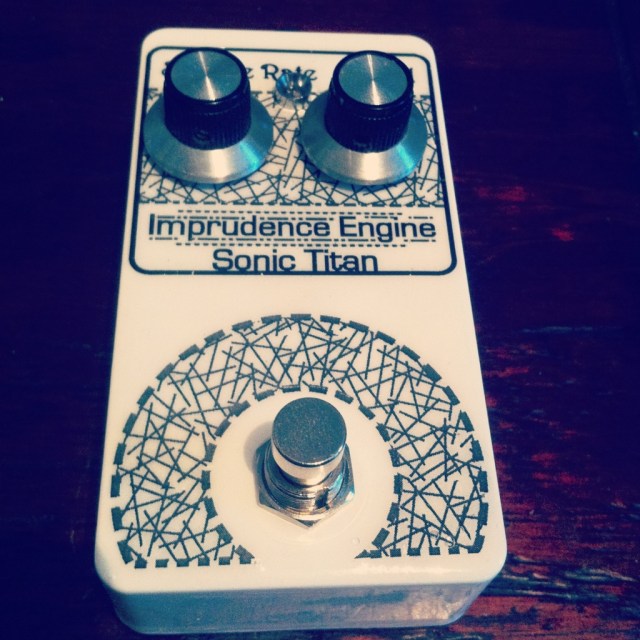

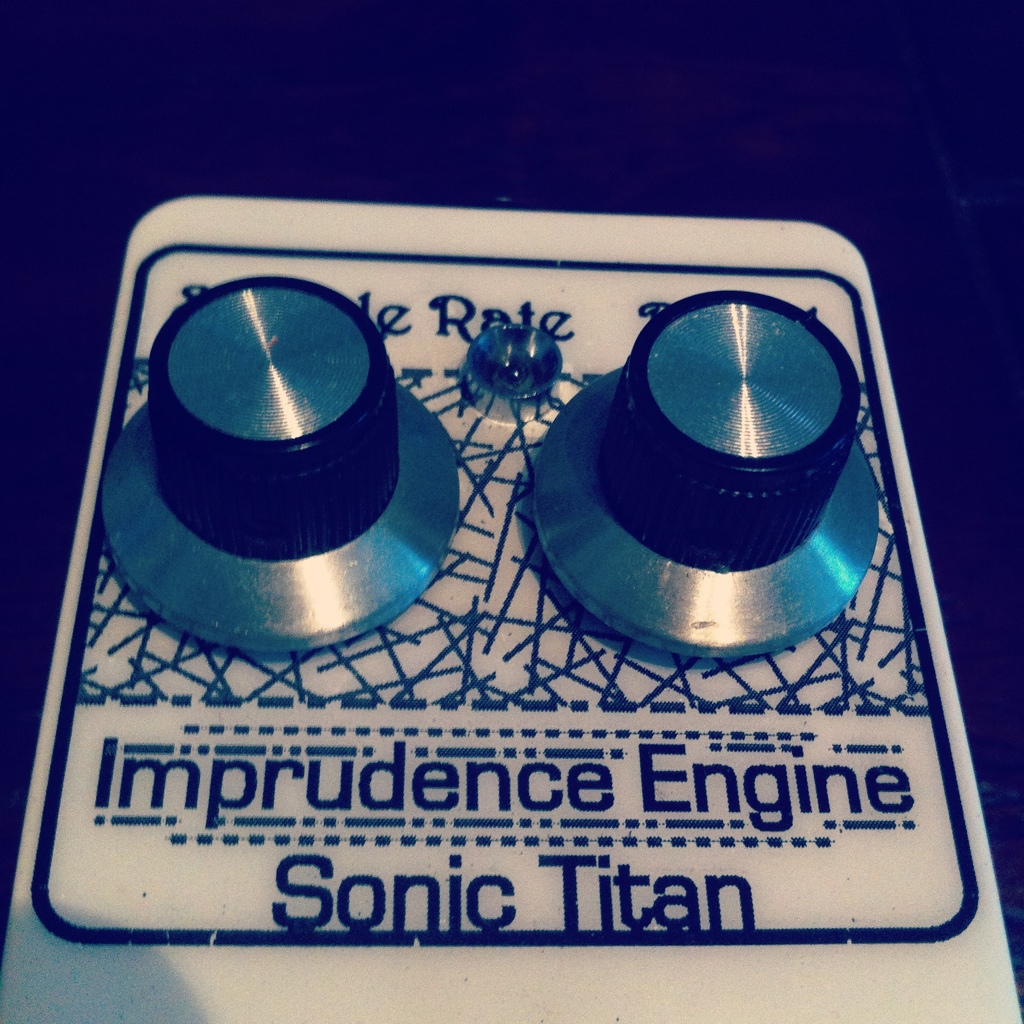

Below is the “Imprudence Engine” – (Yep I’m getting better at hipster names!)

It’s the same Sample Rate Reducer pedal I did a while ago with 2 changes:

1) New graphics 😀
2) 2 DC jacks

I had intended to add a small vero board bipolar PSU to convert a 12V AC input into the 2 required 9V connections.
However, after some consideration, it wasn’t worth the effort and I’ll always have 2 isolated power output anyway.

Check out the video: 😀

Also for those who want to build one, here’s a verified layout I made:

https://sonictitanfx.com/2012/11/22/bugcrusher-etch-bugbrand-sample-rate-reducer/

Also watch out – the AD781 chip required is R200 a pop!

Kind regards,
Matt.
