BugCrusher Etch: (BugBrand Sample Rate Reducer)

Hey guys,

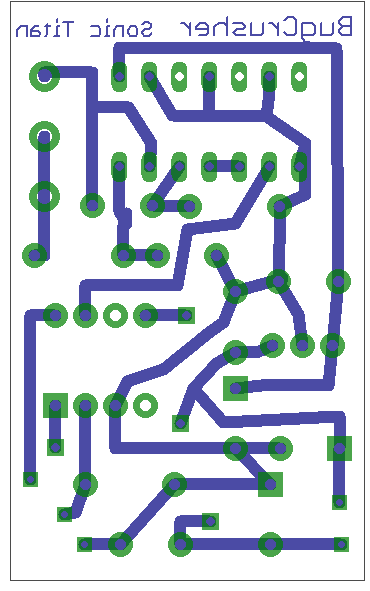

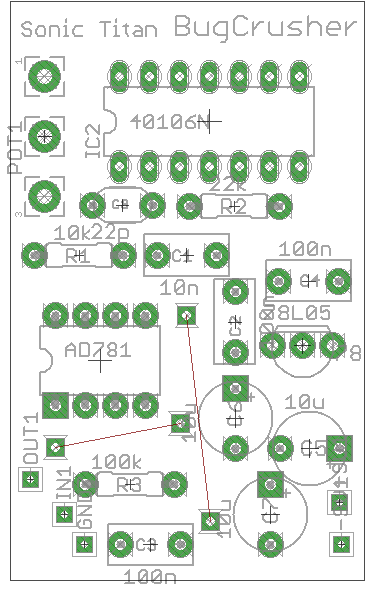

If anyone would like to etch their own BugCrusher, here’s a layout.
The schematic was very kindly shared by Tom at BugBrand.



Matt.

Advertisements
This entry was posted in Lofi/SampleRate/Nonsense. Bookmark the permalink.

2 Responses to BugCrusher Etch: (BugBrand Sample Rate Reducer)

  1. Pingback: More Nonsense: Imprudence Engine | Sonic Titan FX

  2. icecycle66 says:

    I am about to make one of these and I want to make sure I am reading this correctly. I don’t want to fry a $12 AD781.

    i am using this layout and the +9/-9 bipolar supply from GGG.
    Look at the layout.

    The pad on the bottom and all the way to the right; that is for the -9V coming from the bipolar supply. True?
    The pad directly above that; that is for the +9V coming from the bipolar supply. True?
